Lathe Storage
- Thread starter jcdammeyer
- Start date
Great history. Explains a lot.
I am a firm believer in testing to validate theory and simulation. I'm working on an alignment test bar that will be much longer than the traditional bar described in your Southbend documentation. The idea is to improve testable accuracy as well as to be able to do alignments even when the ways are well worn. I can do the math to simulate the situation but I can't validate the worn ways situation without worn ways.
This work is a project that seems to be unfolding over a very long period of time. Too many competing priorities. So the truth is that said measurements may be a year away or more. But when and if I get there, it would be good to have someone I could call on to do a few measurements for me. Nothing onerous. Might not ever happen. Might not even need it. Just making a note of the fact that you have such a machine and be open to such a request is enough for now.
Love to help any way I can. Just ask.
I find the gremlins in my drawings take care of the dwarves
Sorry about the spelling mistake. The plans are from here:
Agreed, they are neat engines. Its the valve gear that make it a Corliss and there is so much going the make an interesting engine to watch.

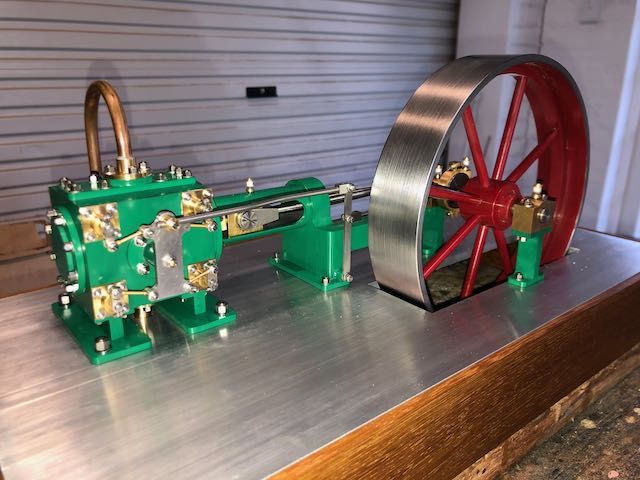

You've got a few options to build one, there may be more, but these are the ones I'm aware of. They're a more involved build, but like everything we do, one way or another is just series of set ups and cuts
Coles used to have a nice kit, but they seem to have imploded. The drawings are still out there. Coles fairly drastically shortened the length of the connecting rod to create a smaller footprint which makes it less prototypical looking but still a great looking model. Casting sets do come up occasionally
![lf]()

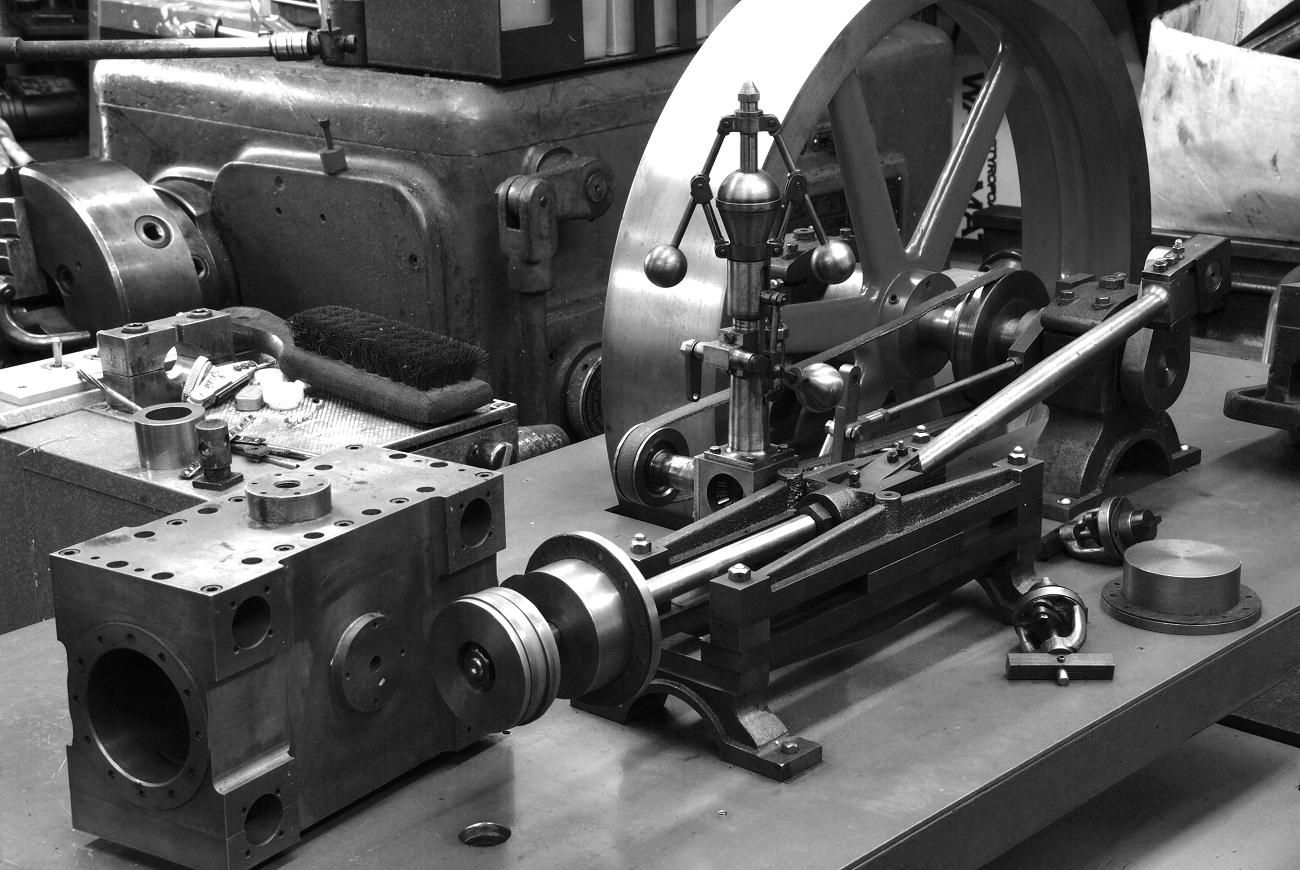

Then there is the Arnold Throp Corliss, a handsome model with castings available from Southworth. http://www.southworthengines.com/engines/mill-engines/corliss-valve-engine/. To look at the Throp engine in more detail, this chap JD Wall likes to redraw these engines https://modelengineeringwebsite.com/Corliss_drawings.html. It would be the one I'd go for, very prototypical looking! (if I didn't already have the giant (13" flywheel) shown above in B&W that needs finishing.)
![phpThumb.php]()
Lastly, there is the MEM Corliss. A great look engine and its a bar stock bar stock so the build is a little easier and a lot less expensive! See the last post here for drawings. Its an open source thing from the good folks at the forum.
![407mw0O.jpg]()
You've got a few options to build one, there may be more, but these are the ones I'm aware of. They're a more involved build, but like everything we do, one way or another is just series of set ups and cuts
Coles used to have a nice kit, but they seem to have imploded. The drawings are still out there. Coles fairly drastically shortened the length of the connecting rod to create a smaller footprint which makes it less prototypical looking but still a great looking model. Casting sets do come up occasionally
Then there is the Arnold Throp Corliss, a handsome model with castings available from Southworth. http://www.southworthengines.com/engines/mill-engines/corliss-valve-engine/. To look at the Throp engine in more detail, this chap JD Wall likes to redraw these engines https://modelengineeringwebsite.com/Corliss_drawings.html. It would be the one I'd go for, very prototypical looking! (if I didn't already have the giant (13" flywheel) shown above in B&W that needs finishing.)
Lastly, there is the MEM Corliss. A great look engine and its a bar stock bar stock so the build is a little easier and a lot less expensive! See the last post here for drawings. Its an open source thing from the good folks at the forum.
Yes. It was the MEM Corliss that he built. In the model builders forum he's 'woodguy'. His suggestion was buy all the screws and nuts first before you start so you know what sizes the holes are.
