Cuttin' it a little close like

little ol' e

Jus' a hobby guy

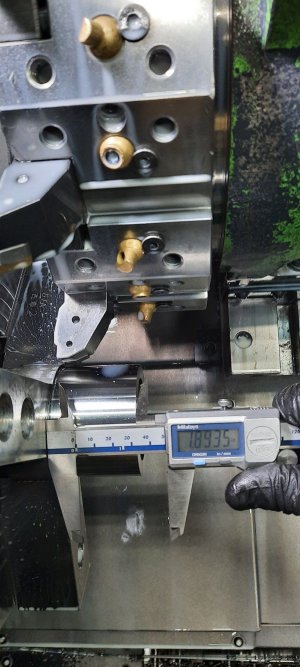

Thought I had my calculations of the step jaw depth correct.
Nope...
Could have been a disaster lol.
Well, time to put a parallel in behind it, then shake off the goose bumps I got from it.

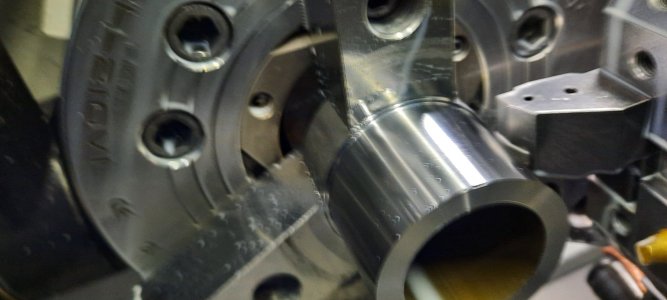

Making a sleeve bushing for a smaller diameter pin


Attachments

  • 20220907_085143.jpg
    320.1 KB · Views: 54
  • 20220907_085120.jpg
    237.3 KB · Views: 54

little ol' e

Jus' a hobby guy

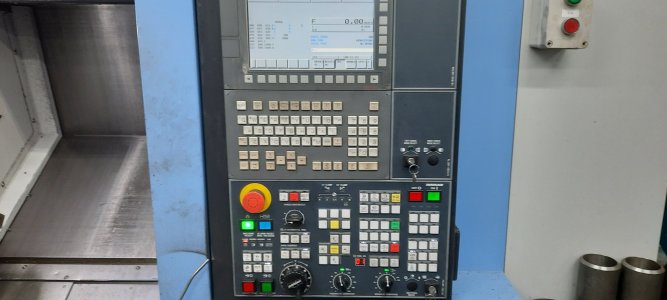

Its a 2 axis CNC Doosan lathe, Fanuc control Puma 2100B. I don't run on a JIT schedule but, I wooed down the feed on this "Just in time"
Wouldn't have got to the full 2" depth before turning for the second op with that set-up lol.
I hear ya on the... Oh $h-t "won't do that again"
The aftershock would have been harder to shake off then the goose bumps had I hit the jaws again !


Janger

(John)
Administrator
Premium Member
Interesting lathe Eric. How old is it? How about some more pictures? I'm always glad to see CNC gear on the forum. Do you use Fusion 360 and the simulator? It's saved my butt a few times avoiding crashes.


little ol' e

Jus' a hobby guy
Hey Janger,

Lathe is a 2014 . I've never tried Fusion 360 . Cam Simulation certainly would have save my butt in many cases over the years without a doubt.
Using Solid works, Mastercam and Worknc.
I Do backplot most of my cutter paths thou, just doesn't show any islands or cusp heights left behind after roughing with too big of a stepover.
For setups, I like to keep things close so to speak, not too much stick out on cutters or part sticking out too far from the vice jaws.
The above picture was a bad quick measurement on the part stick out. Just trying to do a quick bushing can haunt ya sometimes when not paying close enough attention. The gut told me to double check as usual, when I didn't, the goose bumps made me turn the feed down quick to save the damages that could have happened.

I should start using the block simulation feature with clamps in place for 3D cam simulation on the mill thou. Have machined some step clamps, smoked a few cutters along the way. Especially trying to go through islands left behind from having my stepovers set to high after roughing blocks out, then sending the semi finisher in without noticing the island or road bump cusp height left behind.


little ol' e

Jus' a hobby guy
The hair on the back of my neck stood up after this 1. Felt a few more grey hairs poke through as well haha.

I asked the man in the machine "what the heck just happened" but he was speechless.

CNC certainly was a learning curve after manual machining in a tool and die shop for many years.


LenVW

Process Manager, Machinery Designer & Builder
The hair on the back of my neck stood up after this 1. Felt a few more grey hairs poke through as well haha.

I asked the man in the machine "what the heck just happened" but he was speechless.

CNC certainly was a learning curve after manual machining in a tool and die shop for many years.
Sorry about your shield damage - Eric.
I was a manual machinist at Ex-Cell-O - 40 years ago.
We specialized in custom boring heads and carbide insert cartridges.
There was a CNC department as well as carbide insert grinding stations.
After a few decades of machinery development & automation projects I am educating myself about the development of machining and operations that I can achieve on my little mini-mill.

If you are down to Kitchener sometime, there are a few CHMW members in the area.
Give me a call (M. 519-320-0384)


Attachments

  • E6FDB4E6-4ACA-4A6D-B897-3AEDF9241E2E.jpeg
    559.6 KB · Views: 9
  • 76290D8F-69FB-4CBC-BF6E-2853909EEF5A.jpeg
    637.5 KB · Views: 9

little ol' e

Jus' a hobby guy
Sorry about your shield damage - Eric.
I was a manual machinist at Ex-Cell-O - 40 years ago.
We specialized in custom boring heads and carbide insert cartridges.
There was a CNC department as well as carbide insert grinding stations.
After a few decades of machinery development & automation projects I am educating myself about the development of machining and operations that I can achieve on my little mini-mill.

If you are down to Kitchener sometime, there are a few CHMW members in the area.
Give me a call (M. 519-320-0384)
That sounds good Len,

What cad/cam software did you choose?


Degen

Ultra Member
Premium Member
CNC lathe nice.

I've git a CNC using Centriod controls and their software. For programibg I currently use their onboard Intercon system, it works but is definitely the most optimized tool path. To do the optimization, I use the GwizardE as I can see the tool path line by line and adjust the Gcode from there. NZviewer is a cloud based free version that does the same thing. I believe both would work well for programming too.

As to shattering your glass, forgot to tighten the chuck? As the hit looks close to the chuck end and no mention of crash was made other than near miss.


little ol' e

Jus' a hobby guy
I was never a CNC lathe guy. So this is what I learned just recently . Well a few months back. Tried to figure out how the lathe launched the 8x12 piece of 4140 at me.
Yes, I had to clean my drawers out after that 1 haha.
Too start, let's say...

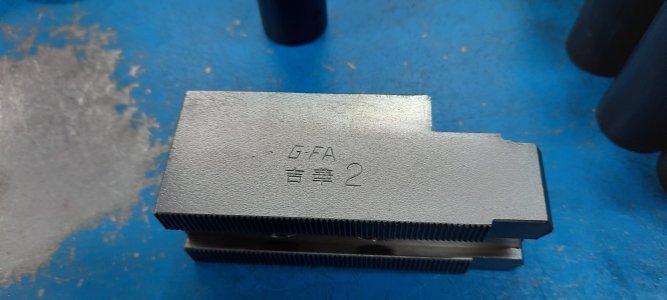

The lathe jaws are all numbered ( well I think some cheap ones aren't) although I have some that are not. Why ? I dunno....


Attachments

  • 20221025_090200.jpg
    237.5 KB · Views: 3

little ol' e

Jus' a hobby guy
This is what really happened lol.

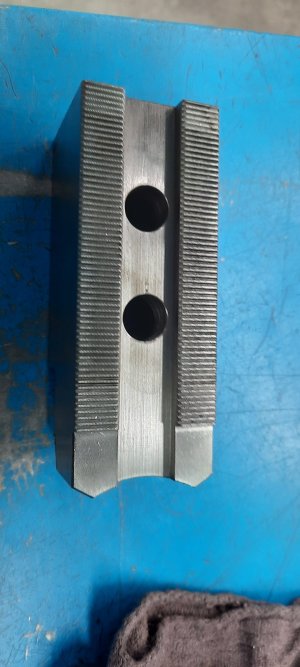

The bottom of the lathe jaws serrations are so close together I have a hard time seeing how many serrations I'm either inside or outside that need to be counted.
Yes, I should have used my mag base and indicated afterwards just to be sure it was running true haha.


Attachments

  • 20221025_090508.jpg
    245.8 KB · Views: 2

DPittman

Ultra Member
This is what really happened lol.
The bottom of the lathe jaws serrations are so close together I have a hard time seeing how many serrations I'm either inside or outside that need to be counted.
Yes, I should have used my mag base and indicated afterwards just to be sure it was running true haha.
Wow those are fine serrations, I can imagine that would be difficult to use. I wonder why so fine.


little ol' e

Jus' a hobby guy

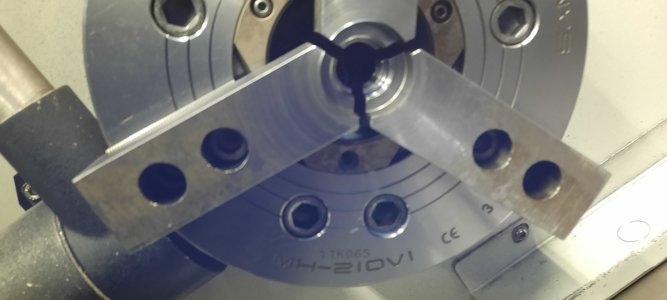

You probably see where I'm going with this now lol..The chuck has numbers on it. 3 jaw- so 1-2-3 is engraved. Would have been good information to know before I riffled a few parts at myself...
Good thing I got that sorted out after a couple mishaps haha.
Because once I machine the jaws for specific diameters and depths, they need to go back in the same location, if not then, yup I need another new window haha.


Attachments

  • 20221025_090308.jpg
    139.2 KB · Views: 1

little ol' e

Jus' a hobby guy

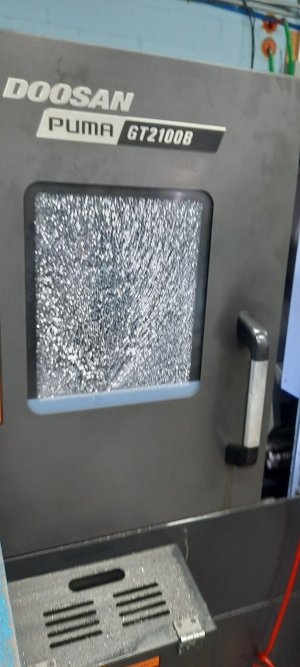

This was the window several months back. I took the other photo down so I'll through this 1 up instead.
Oh, the sound of the part hitting the window and bouncing inside the lathe till it was in the chip conveyor was like a 6 in the mag 1 in the pipe gun shots going off.
But, it's all good now. Finally figured most things out...
So thats how you can take out your CNC lathe window.
That's all for now folks.


Attachments

  • 20221024_073041.jpg
    262.9 KB · Views: 2

little ol' e

Jus' a hobby guy

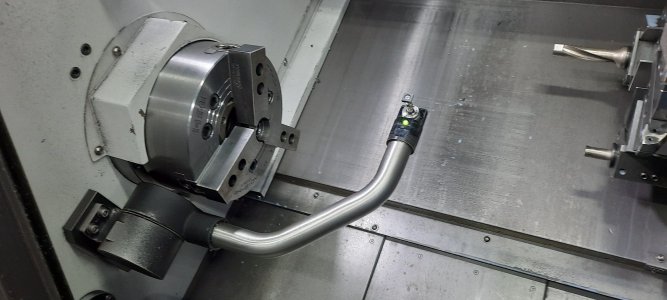

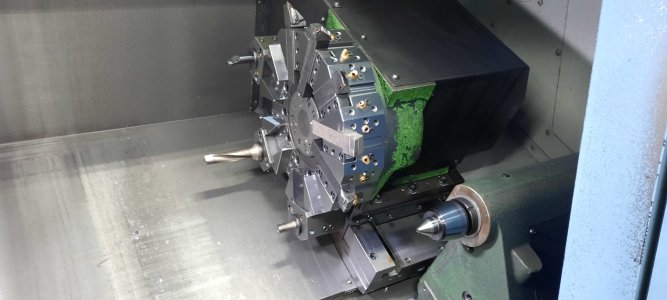

Couple quick pictures of the lathe before I get busy here.
If you notice my live center no longer has a point to it either haha.
But its been replaced... several times lol.
Happy hump day everyone!
Play safe.


Attachments

  • 20221025_083606.jpg
    259.4 KB · Views: 10
  • 20221025_083611.jpg
    220.9 KB · Views: 10
  • 20221025_090745.jpg
    225.7 KB · Views: 10

Dan Dubeau

Ultra Member
Nice lathe, shame about the crash. CNC lathes still scare me a bit. A lot can go wrong really quickly. We have a nakamura tw-20 twin spindle at work. So far I'm the only one here that knows how to run it, and it doesn't get used all that often, but is pretty handy, and a great money maker when it does. I use the left spindle for collet work, and the right for chucking work. Still have yet to figure out the live tooling, and spindle to spindle hand offs. All programmed with finger cam.

I haven't thrown a part yet, but then again I don't really "push" it, as we don't do production work. It's tough to throw a part from a collet, but much easier with the chuck. The chuck being on the right spindle, directly in front of the control at nut height is probably what's keeping me well within the limits :D.


little ol' e

Jus' a hobby guy
Since being a Tool maker for close to 35 years with no real lathe experience, other than turning bumpers and the odd broken punch or bushing in a pinch. My experience was pretty much nil...
The lathe certainly was a learning curve. I'd be lying if I said I wasn't scared myself when going through the learning process.
Was using coolant for everything at the time with the lathe and was difficult to see my distance to go before nailing the jaws haha.
I must say, the window is tough, the hub I was doing didn't come through it, spinning it at 3700rpm. Didn't take long to spit it out that's for sure.
Since, I was up close to that window watching my distance to go I figured I got lucky. I didn't have to shell out another 5k for new dentures.
luckily, I only had to change my underware and pluck a few more grey hairs out. Probably why I'm mostly grey now haha.
The 2 axis lathe suits me just fine these days. I'm still light years behind the live tooling, C&Y axis lathes. I load each part, no bar feed yet and I still encounter problems haha.
I hope your enjoying the trade Dan, I've had many good years over the years. Enjoy it!


Dan Dubeau

Ultra Member
Since being a Tool maker for close to 35 years with no real lathe experience, other than turning bumpers and the odd broken punch or bushing in a pinch. My experience was pretty much nil...
The lathe certainly was a learning curve. I'd be lying if I said I wasn't scared myself when going through the learning process.
Was using coolant for everything at the time with the lathe and was difficult to see my distance to go before nailing the jaws haha.
I must say, the window is tough, the hub I was doing didn't come through it, spinning it at 3700rpm. Didn't take long to spit it out that's for sure.
Since, I was up close to that window watching my distance to go I figured I got lucky. I didn't have to shell out another 5k for new dentures.
luckily, I only had to change my underware and pluck a few more grey hairs out. Probably why I'm mostly grey now haha.
The 2 axis lathe suits me just fine these days. I'm still light years behind the live tooling, C&Y axis lathes. I load each part, no bar feed yet and I still encounter problems haha.
I hope your enjoying the trade Dan, I've had many good years over the years. Enjoy it!
Windows in CNC lathes, are a lot tougher than the 1/8" acrylic windows in most CNC mills. Ours looks pretty beefy, I hope I never have to test it.

I've had an interesting career path and while I'd like to say it's been fun the whole time (mostly automotive industry.....checking fixtures :D). almost 19 years in now, but it has been good to me though. Never a dull moment. Should be able to ride the wave until retirement. Hopefully.

Our Nak is only a c axis with live toys. I've had to learn it all by myself from books, manuals, and the internet, but have just never found the time or need to get into that side of it, so it just gets used as a simple 2 axis. Would love to have it at home, and could probably keep it fed with work, but I don't have the juice for it, nor the space. It sits a lot at work because I don't have time to find work for it, nor do I want to be the one to babysit it all the time. A smaller lathe like a tormach, or Omniturn will eventually find a spot in my home shop though or I'd love to retrofit a hardinge TL or similar someday. To many projects, too little time.
