CNC turned ball

Alexander

Ultra Member
Administrator
The project is to reproduce some ball joints out of steel. The parts are available at the truck shop but just too expensive. I uploaded the original and the part I made in my little lathe. It was a challenge but a really fun one. One of my buddy's wrote the program and we ran just the first of many today.

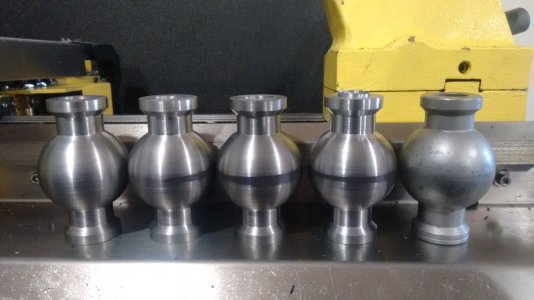

IMG_20151024_160843823.jpg this is the store bought original. Below is what we turned on the CNC.


Last edited:

Alexander

Ultra Member
Administrator
No it is a universal joint for racing. Commonly used in 4 link suspension. This is just the inner part of the bal link.


Tom O

Ultra Member
lol just thinking my son and I want to build a English wheel and have started getting some metal together. I want to make the anvils myself so I am currently devising plans to have a radius tool that will be ajustable that mounts to the ways. I've made anvils before but thats when I had a Harrison copy lathe.


Alexander

Ultra Member
Administrator

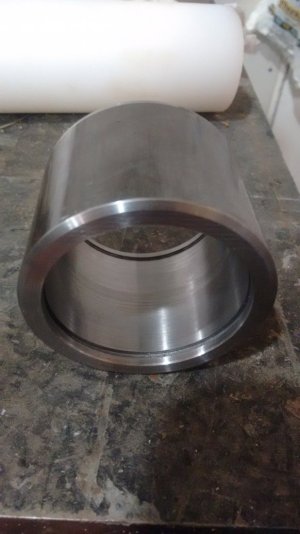

This is the housing for Andrews ball joint. The ID groves are for snaprings so the whole unit will be rebuildable. IMG_20151031_130243371.jpg


Alexander

Ultra Member
Administrator

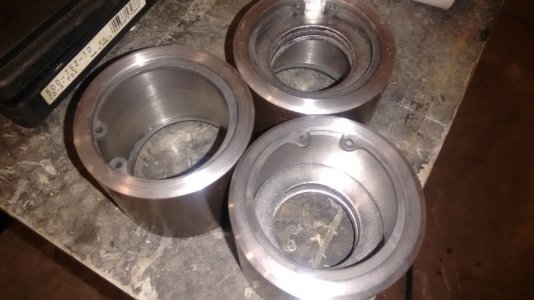

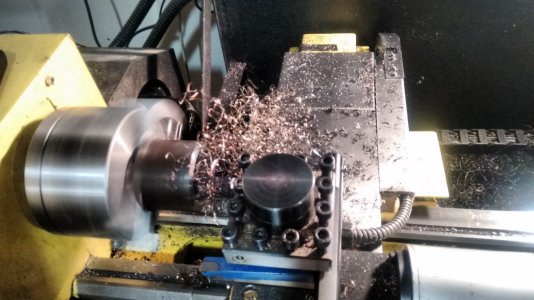

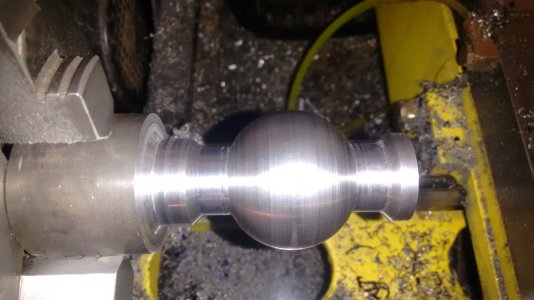

IMG_20151031_160328871.jpg I wanted to show off more of the build. Really decent results my lathe needs a bigger spindle motor to actually put a job like this into production. IMG_20151031_144746561.jpg IMG_20151031_164638684.jpg


Alexander

Ultra Member
Administrator

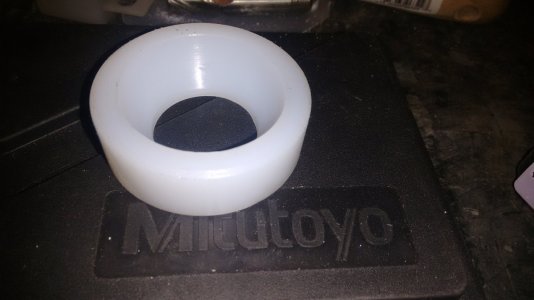

This is the last piece to the puzzle. It is half of the bishing that fits around the ball and allows the joint to pivot. IMG_20151101_114804167.jpg
