3D printed circuit board!?!

David

David

Scrap maker
Administrator
Moderator
Premium Member


Last edited:
Explain to my very old brain. For one-off boards, like the stuff I make, how can this possibly be faster or easier than a perf board, some extended-pin sockets, a spool of 32ga wire, and a wire wrap tool?

Full disclosure, I have a 2.5d CNC circuit board maker that I got for free because the electronic design firm that bought it gave up on trying to get it to work.

Build a circuit beginning to end in 30 minutes with BotFactory Squink

In this 30 minute video we show you how to print a automatic light switch based on a phototransistor. If this is your first time with Squink, this is
www.botfactory.co

whydontu said:
Explain to my very old brain. For one-off boards, like the stuff I make, how can this possibly be faster or easier than a perf board, some extended-pin sockets, a spool of 32ga wire, and a wire wrap tool?

Full disclosure, I have a 2.5d CNC circuit board maker that I got for free because the electronic design firm that bought it gave up on trying to get it to work.

Build a circuit beginning to end in 30 minutes with BotFactory Squink

In this 30 minute video we show you how to print a automatic light switch based on a phototransistor. If this is your first time with Squink, this is
www.botfactory.co
Click to expand...
It's definitely not faster. But pretty darn cool.

I like every minute of this video - idea, implementation, a BBC style drama , accent ( ahhhh British RP accent ) . But, please, explain to me how solder is sticking to the plastic board?

Gennady said:
I like every minute of this video - idea, implementation, a BBC style drama , accent ( ahhhh British RP accent ) . But, please, explain to me how solder is sticking to the plastic board?
Click to expand...

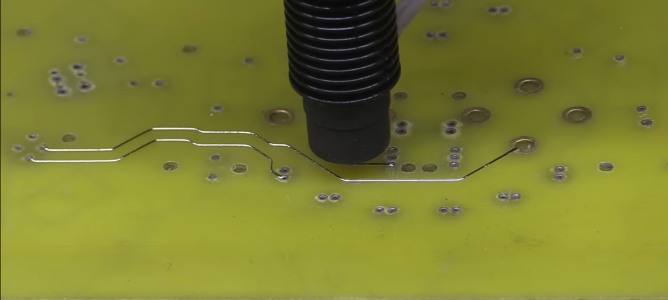

I was thinking the same thing, then I saw them lifting traces to mount the LEDs and I realized they are not sticking, just laying there. Maybe spray it with conformal coating and it'll stick enough to keep things in place?

Mike R said:
I was thinking the same thing, then I saw them lifting traces to mount the LEDs and I realized they are not sticking, just laying there. Maybe spray it with conformal coating and it'll stick enough to keep things in place?
Click to expand...
In the 'parent' video they mention that the traces are glued down.
If you're a gear head and you haven't watched their channel it's a total binge-fest. The Project Binky build is just outstanding.
